ELF64

what is ELF64? ELF64 is Executable and Linkable Format for unix system (mostly), lets look the structure of elf64_hdr

this struct located at beginning of object file, the main usage is locate all other parts of object file. the header (such *.o file contains ELF struct)

preface

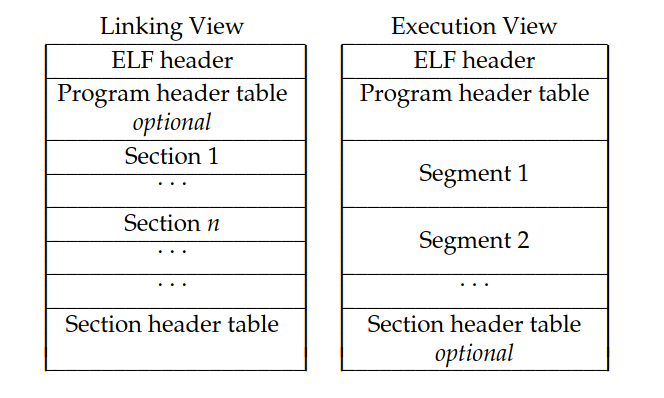

this is how ELF file look-like

typedef struct elf64_hdr {
  unsigned char	e_ident[EI_NIDENT];	/* ELF "magic number" */
  Elf64_Half e_type;
  Elf64_Half e_machine;
  Elf64_Word e_version;
  Elf64_Addr e_entry;		/* Entry point virtual address */
  Elf64_Off e_phoff;		/* Program header table file offset */
  Elf64_Off e_shoff;		/* Section header table file offset */
  Elf64_Word e_flags;
  Elf64_Half e_ehsize;
  Elf64_Half e_phentsize;
  Elf64_Half e_phnum;
  Elf64_Half e_shentsize;
  Elf64_Half e_shnum;
  Elf64_Half e_shstrndx;
} Elf64_Ehdr;

code: https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/include/uapi/linux/elf.h#n234

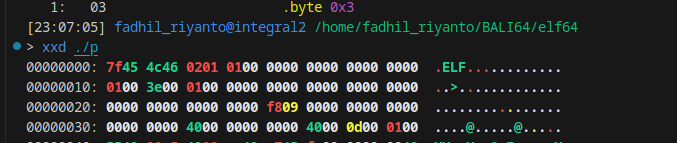

the ELF file is always start by this bytes 7f 45 4c 46, which DEL E L F

The first 16 bytes link is a magic number, 7f make sure the text editor, this is not a normal file, this is binary, preventing to open the file. 45 4c 46 is a ELF signature

ELFCLASS

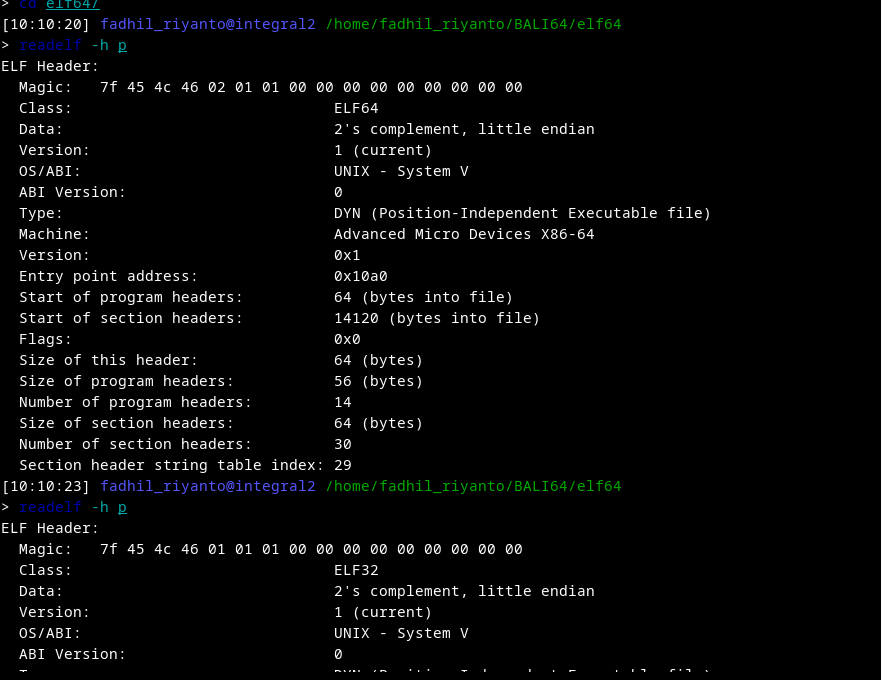

This footage shown program compiled by normal gcc (my machine is 64 bit), vs compiled by -m32

ELF file structure

elf64_hdr: elf header
elf64_shdr: elf section header
elf64_phdr: elf program header

elf64_hdr

the definition

typedef struct elf64_hdr {
  unsigned char e_ident[EI_NIDENT]; /* Magic number and other info */
  Elf64_Half    e_type;      /* Object file type */
  Elf64_Half    e_machine;   /* Architecture */
  Elf64_Word    e_version;   /* Object file version */
  Elf64_Addr    e_entry;     /* Entry point virtual address */
  Elf64_Off     e_phoff;     /* Program header table file offset */
  Elf64_Off     e_shoff;     /* Section header table file offset */
  Elf64_Word    e_flags;     /* Processor-specific flags */
  Elf64_Half    e_ehsize;    /* ELF header size in bytes */
  Elf64_Half    e_phentsize; /* Program header table entry size */
  Elf64_Half    e_phnum;     /* Program header table entry count */
  Elf64_Half    e_shentsize; /* Section header table entry size */
  Elf64_Half    e_shnum;     /* Section header table entry count */
  Elf64_Half    e_shstrndx;  /* Section names string table index */
} Elf64_Ehdr;

the value (enum like)

e_ident

INDEX: [0, 1, 2, 3]

  #define EI_MAG0         0               /* File identification byte 0 index */
  #define ELFMAG0         0x7f            /* Magic number byte 0 */

  #define EI_MAG1         1               /* File identification byte 1 index */
  #define ELFMAG1         'E'             /* Magic number byte 1 */

  #define EI_MAG2         2               /* File identification byte 2 index */
  #define ELFMAG2         'L'             /* Magic number byte 2 */

  #define EI_MAG3         3               /* File identification byte 3 index */
  #define ELFMAG3         'F'             /* Magic number byte 3 */

INDEX: [4]

#define ELFCLASSNONE    0               /* Invalid class */
#define ELFCLASS32      1               /* 32-bit objects */
#define ELFCLASS64      2               /* 64-bit objects */
#define ELFCLASSNUM     3

INDEX: [5]

#define ELFDATANONE     0               /* Invalid data encoding */
#define ELFDATA2LSB     1               /* 2's complement, little endian */
#define ELFDATA2MSB     2               /* 2's complement, big endian */
#define ELFDATANUM      3

INDEX: [6]

#define EI_VERSION      6               /* File version byte index */
                                        /* Value must be EV_CURRENT */

INDEX: [7]

#define ELFOSABI_NONE           0       /* UNIX System V ABI */
#define ELFOSABI_SYSV           0       /* Alias.  */
#define ELFOSABI_HPUX           1       /* HP-UX */
#define ELFOSABI_NETBSD         2       /* NetBSD.  */
#define ELFOSABI_GNU            3       /* Object uses GNU ELF extensions.  */
#define ELFOSABI_LINUX          ELFOSABI_GNU /* Compatibility alias.  */
#define ELFOSABI_SOLARIS        6       /* Sun Solaris.  */
#define ELFOSABI_AIX            7       /* IBM AIX.  */
#define ELFOSABI_IRIX           8       /* SGI Irix.  */
#define ELFOSABI_FREEBSD        9       /* FreeBSD.  */
#define ELFOSABI_TRU64          10      /* Compaq TRU64 UNIX.  */
#define ELFOSABI_MODESTO        11      /* Novell Modesto.  */
#define ELFOSABI_OPENBSD        12      /* OpenBSD.  */
#define ELFOSABI_ARM_AEABI      64      /* ARM EABI */
#define ELFOSABI_ARM            97      /* ARM */
#define ELFOSABI_STANDALONE     255     /* Standalone (embedded) application */

INDEX: [8]

#define EI_ABIVERSION   8               /* ABI version */

INDEX: [9]

#define EI_PAD          9               /* Byte index of padding bytes */

back

e_type

#define ET_NONE         0               /* No file type */
#define ET_REL          1               /* Relocatable file */
#define ET_EXEC         2               /* Executable file */
#define ET_DYN          3               /* Shared object file */
#define ET_CORE         4               /* Core file */
#define ET_NUM          5               /* Number of defined types */
#define ET_LOOS         0xfe00          /* OS-specific range start */
#define ET_HIOS         0xfeff          /* OS-specific range end */
#define ET_LOPROC       0xff00          /* Processor-specific range start */
#define ET_HIPROC       0xffff          /* Processor-specific range end */

back

e_machine

#define EM_NONE    0  /* No machine */
#define EM_M32     1  /* AT&T WE 32100 */
#define EM_SPARC   2  /* SUN SPARC */
#define EM_386     3  /* Intel 80386 */
#define EM_68K     4  /* Motorola m68k family */
#define EM_88K     5  /* Motorola m88k family */
#define EM_IAMCU   6  /* Intel MCU */
#define EM_860     7  /* Intel 80860 */
#define EM_MIPS    8  /* MIPS R3000 big-endian */
#define EM_S370    9  /* IBM System/370 */
#define EM_MIPS_RS3_LE  10  /* MIPS R3000 little-endian */
        /* reserved 11-14 */
#define EM_PARISC 15  /* HPPA */
        /* reserved 16 */
#define EM_VPP500 17  /* Fujitsu VPP500 */
#define EM_SPARC32PLUS  18  /* Sun's "v8plus" */
#define EM_960    19  /* Intel 80960 */
#define EM_PPC    20  /* PowerPC */
#define EM_PPC64  21  /* PowerPC 64-bit */
#define EM_S390   22  /* IBM S390 */
#define EM_SPU    23  /* IBM SPU/SPC */
        /* reserved 24-35 */
#define EM_V800   36  /* NEC V800 series */
#define EM_FR20   37  /* Fujitsu FR20 */
#define EM_RH32   38  /* TRW RH-32 */
#define EM_RCE    39  /* Motorola RCE */
#define EM_ARM    40  /* ARM */
#define EM_FAKE_ALPHA 41  /* Digital Alpha */
#define EM_SH   42  /* Hitachi SH */
#define EM_SPARCV9  43  /* SPARC v9 64-bit */
#define EM_TRICORE  44  /* Siemens Tricore */
#define EM_ARC    45  /* Argonaut RISC Core */
#define EM_H8_300 46  /* Hitachi H8/300 */
#define EM_H8_300H  47  /* Hitachi H8/300H */
#define EM_H8S    48  /* Hitachi H8S */
#define EM_H8_500 49  /* Hitachi H8/500 */
#define EM_IA_64  50  /* Intel Merced */
#define EM_MIPS_X 51  /* Stanford MIPS-X */
#define EM_COLDFIRE 52  /* Motorola Coldfire */
#define EM_68HC12 53  /* Motorola M68HC12 */
#define EM_MMA    54  /* Fujitsu MMA Multimedia Accelerator */
#define EM_PCP    55  /* Siemens PCP */
#define EM_NCPU   56  /* Sony nCPU embedded RISC */
#define EM_NDR1   57  /* Denso NDR1 microprocessor */
#define EM_STARCORE 58  /* Motorola Start*Core processor */
#define EM_ME16   59  /* Toyota ME16 processor */
#define EM_ST100  60  /* STMicroelectronic ST100 processor */
#define EM_TINYJ  61  /* Advanced Logic Corp. Tinyj emb.fam */
#define EM_X86_64 62  /* AMD x86-64 architecture */
#define EM_PDSP   63  /* Sony DSP Processor */
#define EM_PDP10  64  /* Digital PDP-10 */
#define EM_PDP11  65  /* Digital PDP-11 */
#define EM_FX66   66  /* Siemens FX66 microcontroller */
#define EM_ST9PLUS  67  /* STMicroelectronics ST9+ 8/16 mc */
#define EM_ST7    68  /* STmicroelectronics ST7 8 bit mc */
#define EM_68HC16 69  /* Motorola MC68HC16 microcontroller */
#define EM_68HC11 70  /* Motorola MC68HC11 microcontroller */
#define EM_68HC08 71  /* Motorola MC68HC08 microcontroller */
#define EM_68HC05 72  /* Motorola MC68HC05 microcontroller */
#define EM_SVX    73  /* Silicon Graphics SVx */
#define EM_ST19   74  /* STMicroelectronics ST19 8 bit mc */
#define EM_VAX    75  /* Digital VAX */
#define EM_CRIS   76  /* Axis Communications 32-bit emb.proc */
#define EM_JAVELIN  77  /* Infineon Technologies 32-bit emb.proc */
#define EM_FIREPATH 78  /* Element 14 64-bit DSP Processor */
#define EM_ZSP    79  /* LSI Logic 16-bit DSP Processor */
#define EM_MMIX   80  /* Donald Knuth's educational 64-bit proc */
#define EM_HUANY  81  /* Harvard University machine-independent object files */
#define EM_PRISM  82  /* SiTera Prism */
#define EM_AVR    83  /* Atmel AVR 8-bit microcontroller */
#define EM_FR30   84  /* Fujitsu FR30 */
#define EM_D10V   85  /* Mitsubishi D10V */
#define EM_D30V   86  /* Mitsubishi D30V */
#define EM_V850   87  /* NEC v850 */
#define EM_M32R   88  /* Mitsubishi M32R */
#define EM_MN10300  89  /* Matsushita MN10300 */
#define EM_MN10200  90  /* Matsushita MN10200 */
#define EM_PJ   91  /* picoJava */
#define EM_OPENRISC 92  /* OpenRISC 32-bit embedded processor */
#define EM_ARC_COMPACT  93  /* ARC International ARCompact */
#define EM_XTENSA 94  /* Tensilica Xtensa Architecture */
#define EM_VIDEOCORE  95  /* Alphamosaic VideoCore */
#define EM_TMM_GPP  96  /* Thompson Multimedia General Purpose Proc */
#define EM_NS32K  97  /* National Semi. 32000 */
#define EM_TPC    98  /* Tenor Network TPC */
#define EM_SNP1K  99  /* Trebia SNP 1000 */
#define EM_ST200  100 /* STMicroelectronics ST200 */
#define EM_IP2K   101 /* Ubicom IP2xxx */
#define EM_MAX    102 /* MAX processor */
#define EM_CR   103 /* National Semi. CompactRISC */
#define EM_F2MC16 104 /* Fujitsu F2MC16 */
#define EM_MSP430 105 /* Texas Instruments msp430 */
#define EM_BLACKFIN 106 /* Analog Devices Blackfin DSP */
#define EM_SE_C33 107 /* Seiko Epson S1C33 family */
#define EM_SEP    108 /* Sharp embedded microprocessor */
#define EM_ARCA   109 /* Arca RISC */
#define EM_UNICORE  110 /* PKU-Unity & MPRC Peking Uni. mc series */
#define EM_EXCESS 111 /* eXcess configurable cpu */
#define EM_DXP    112 /* Icera Semi. Deep Execution Processor */
#define EM_ALTERA_NIOS2 113 /* Altera Nios II */
#define EM_CRX    114 /* National Semi. CompactRISC CRX */
#define EM_XGATE  115 /* Motorola XGATE */
#define EM_C166   116 /* Infineon C16x/XC16x */
#define EM_M16C   117 /* Renesas M16C */
#define EM_DSPIC30F 118 /* Microchip Technology dsPIC30F */
#define EM_CE   119 /* Freescale Communication Engine RISC */
#define EM_M32C   120 /* Renesas M32C */
        /* reserved 121-130 */
#define EM_TSK3000  131 /* Altium TSK3000 */
#define EM_RS08   132 /* Freescale RS08 */
#define EM_SHARC  133 /* Analog Devices SHARC family */
#define EM_ECOG2  134 /* Cyan Technology eCOG2 */
#define EM_SCORE7 135 /* Sunplus S+core7 RISC */
#define EM_DSP24  136 /* New Japan Radio (NJR) 24-bit DSP */
#define EM_VIDEOCORE3 137 /* Broadcom VideoCore III */
#define EM_LATTICEMICO32 138  /* RISC for Lattice FPGA */
#define EM_SE_C17 139 /* Seiko Epson C17 */
#define EM_TI_C6000 140 /* Texas Instruments TMS320C6000 DSP */
#define EM_TI_C2000 141 /* Texas Instruments TMS320C2000 DSP */
#define EM_TI_C5500 142 /* Texas Instruments TMS320C55x DSP */
#define EM_TI_ARP32 143 /* Texas Instruments App. Specific RISC */
#define EM_TI_PRU 144 /* Texas Instruments Prog. Realtime Unit */
        /* reserved 145-159 */
#define EM_MMDSP_PLUS 160 /* STMicroelectronics 64bit VLIW DSP */
#define EM_CYPRESS_M8C  161 /* Cypress M8C */
#define EM_R32C   162 /* Renesas R32C */
#define EM_TRIMEDIA 163 /* NXP Semi. TriMedia */
#define EM_QDSP6  164 /* QUALCOMM DSP6 */
#define EM_8051   165 /* Intel 8051 and variants */
#define EM_STXP7X 166 /* STMicroelectronics STxP7x */
#define EM_NDS32  167 /* Andes Tech. compact code emb. RISC */
#define EM_ECOG1X 168 /* Cyan Technology eCOG1X */
#define EM_MAXQ30 169 /* Dallas Semi. MAXQ30 mc */
#define EM_XIMO16 170 /* New Japan Radio (NJR) 16-bit DSP */
#define EM_MANIK  171 /* M2000 Reconfigurable RISC */
#define EM_CRAYNV2  172 /* Cray NV2 vector architecture */
#define EM_RX   173 /* Renesas RX */
#define EM_METAG  174 /* Imagination Tech. META */
#define EM_MCST_ELBRUS  175 /* MCST Elbrus */
#define EM_ECOG16 176 /* Cyan Technology eCOG16 */
#define EM_CR16   177 /* National Semi. CompactRISC CR16 */
#define EM_ETPU   178 /* Freescale Extended Time Processing Unit */
#define EM_SLE9X  179 /* Infineon Tech. SLE9X */
#define EM_L10M   180 /* Intel L10M */
#define EM_K10M   181 /* Intel K10M */
        /* reserved 182 */
#define EM_AARCH64  183 /* ARM AARCH64 */
        /* reserved 184 */
#define EM_AVR32  185 /* Amtel 32-bit microprocessor */
#define EM_STM8   186 /* STMicroelectronics STM8 */
#define EM_TILE64 187 /* Tilera TILE64 */
#define EM_TILEPRO  188 /* Tilera TILEPro */
#define EM_MICROBLAZE 189 /* Xilinx MicroBlaze */
#define EM_CUDA   190 /* NVIDIA CUDA */
#define EM_TILEGX 191 /* Tilera TILE-Gx */
#define EM_CLOUDSHIELD  192 /* CloudShield */
#define EM_COREA_1ST  193 /* KIPO-KAIST Core-A 1st gen. */
#define EM_COREA_2ND  194 /* KIPO-KAIST Core-A 2nd gen. */
#define EM_ARCV2  195 /* Synopsys ARCv2 ISA.  */
#define EM_OPEN8  196 /* Open8 RISC */
#define EM_RL78   197 /* Renesas RL78 */
#define EM_VIDEOCORE5 198 /* Broadcom VideoCore V */
#define EM_78KOR  199 /* Renesas 78KOR */
#define EM_56800EX  200 /* Freescale 56800EX DSC */
#define EM_BA1    201 /* Beyond BA1 */
#define EM_BA2    202 /* Beyond BA2 */
#define EM_XCORE  203 /* XMOS xCORE */
#define EM_MCHP_PIC 204 /* Microchip 8-bit PIC(r) */
#define EM_INTELGT  205 /* Intel Graphics Technology */
        /* reserved 206-209 */
#define EM_KM32   210 /* KM211 KM32 */
#define EM_KMX32  211 /* KM211 KMX32 */
#define EM_EMX16  212 /* KM211 KMX16 */
#define EM_EMX8   213 /* KM211 KMX8 */
#define EM_KVARC  214 /* KM211 KVARC */
#define EM_CDP    215 /* Paneve CDP */
#define EM_COGE   216 /* Cognitive Smart Memory Processor */
#define EM_COOL   217 /* Bluechip CoolEngine */
#define EM_NORC   218 /* Nanoradio Optimized RISC */
#define EM_CSR_KALIMBA  219 /* CSR Kalimba */
#define EM_Z80    220 /* Zilog Z80 */
#define EM_VISIUM 221 /* Controls and Data Services VISIUMcore */
#define EM_FT32   222 /* FTDI Chip FT32 */
#define EM_MOXIE  223 /* Moxie processor */
#define EM_AMDGPU 224 /* AMD GPU */
        /* reserved 225-242 */
#define EM_RISCV  243 /* RISC-V */

#define EM_BPF    247 /* Linux BPF -- in-kernel virtual machine */
#define EM_CSKY   252     /* C-SKY */
#define EM_LOONGARCH  258 /* LoongArch */

#define EM_NUM    259

/* Old spellings/synonyms.  */

#define EM_ARC_A5 EM_ARC_COMPACT

/* If it is necessary to assign new unofficial EM_* values, please
   pick large random numbers (0x8523, 0xa7f2, etc.) to minimize the
   chances of collision with official or non-GNU unofficial values.  */

#define EM_ALPHA  0x9026

back

e_version

#define EV_NONE         0               /* Invalid ELF version */
#define EV_CURRENT      1               /* Current version */
#define EV_NUM          2

back

elf64_shdr

All data stores in a sections in an Elf object file. Sections identified by index in the section header table.

typedef struct
{
  Elf64_Word    sh_name;                /* Section name (string tbl index) */
  Elf64_Word    sh_type;                /* Section type */
  Elf64_Xword   sh_flags;               /* Section flags */
  Elf64_Addr    sh_addr;                /* Section virtual addr at execution */
  Elf64_Off     sh_offset;              /* Section file offset */
  Elf64_Xword   sh_size;                /* Section size in bytes */
  Elf64_Word    sh_link;                /* Link to another section */
  Elf64_Word    sh_info;                /* Additional section information */
  Elf64_Xword   sh_addralign;           /* Section alignment */
  Elf64_Xword   sh_entsize;             /* Entry size if section holds table */
} Elf64_Shdr;

Fadhil Journal & Notes

ELF64

preface

ELFCLASS

ELF file structure

elf64_hdr

link go to the definition

e_ident

e_type

e_machine

e_version

elf64_shdr
