finding .shstrtab section

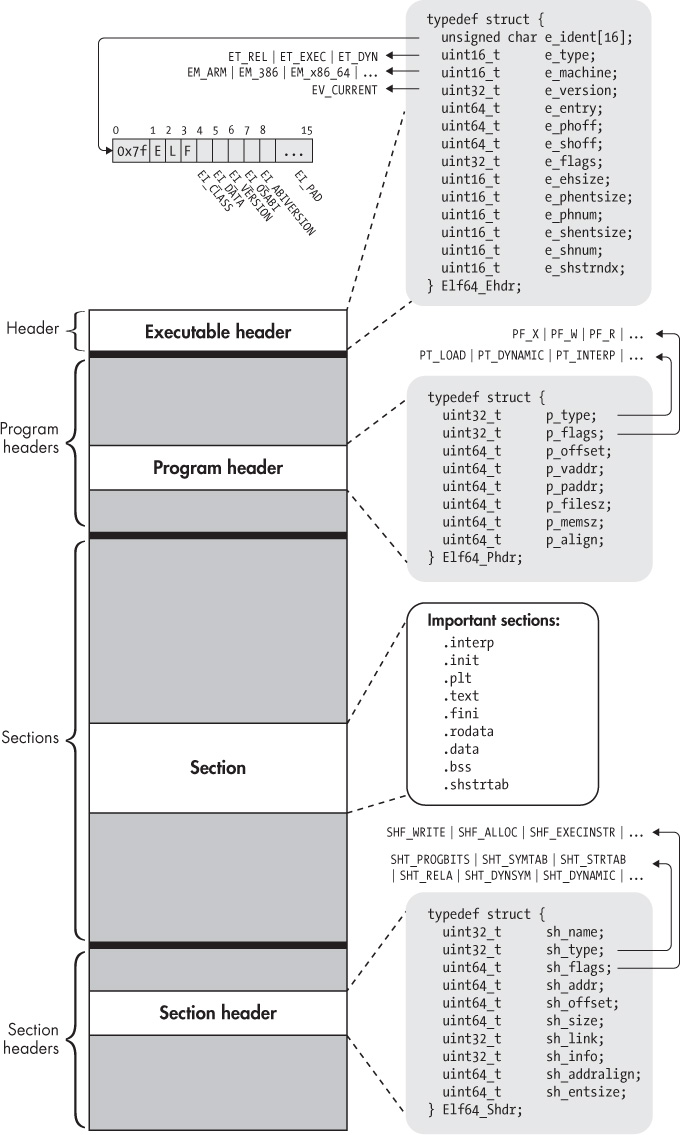

first, we need to look at some struct in order to find shstrtab on ELF file

gambar

this is ELF header

typedef struct
{
  unsigned char	e_ident[EI_NIDENT];	/* Magic number and other info */
  Elf64_Half	e_type;			/* Object file type */
  Elf64_Half	e_machine;		/* Architecture */
  Elf64_Word	e_version;		/* Object file version */
  Elf64_Addr	e_entry;		/* Entry point virtual address */
  Elf64_Off	e_phoff;		/* Program header table file offset */
  Elf64_Off	e_shoff;		/* Section header table file offset */
  Elf64_Word	e_flags;		/* Processor-specific flags */
  Elf64_Half	e_ehsize;		/* ELF header size in bytes */
  Elf64_Half	e_phentsize;		/* Program header table entry size */
  Elf64_Half	e_phnum;		/* Program header table entry count */
  Elf64_Half	e_shentsize;		/* Section header table entry size */
  Elf64_Half	e_shnum;		/* Section header table entry count */
  Elf64_Half	e_shstrndx;		/* Section header string table index */
} Elf64_Ehdr;

this is section header

typedef struct
{
  Elf64_Word	sh_name;		/* Section name (string tbl index) */
  Elf64_Word	sh_type;		/* Section type */
  Elf64_Xword	sh_flags;		/* Section flags */
  Elf64_Addr	sh_addr;		/* Section virtual addr at execution */
  Elf64_Off	sh_offset;		/* Section file offset */
  Elf64_Xword	sh_size;		/* Section size in bytes */
  Elf64_Word	sh_link;		/* Link to another section */
  Elf64_Word	sh_info;		/* Additional section information */
  Elf64_Xword	sh_addralign;		/* Section alignment */
  Elf64_Xword	sh_entsize;		/* Entry size if section holds table */
} Elf64_Shdr;

finding it

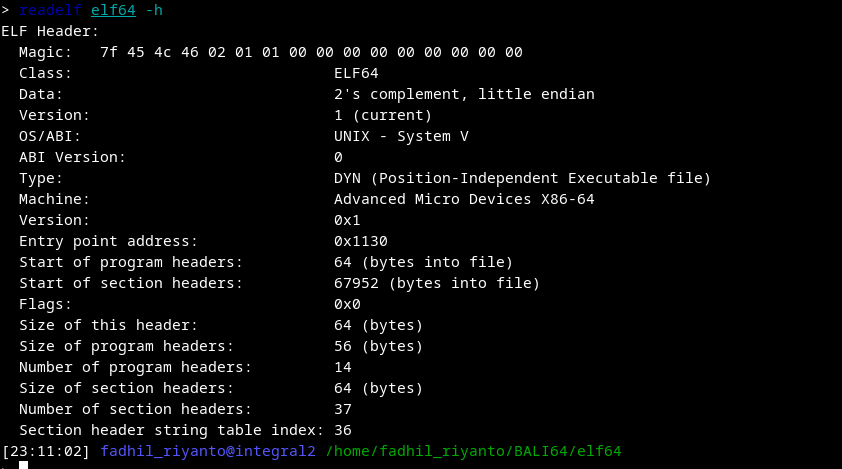

first, we need obtain how much we need to walk, to enter the start of section header, this is can be done by

keep your mind in "Start of section headers"

access the array

because this is just start, so its started on index 0, luckly the ELF header tell me, what index .shstrtab is located, look at "Section header string table index". its 36

in C you may doing

Elf64_Shdr data = /* any data */;
dump(data[36]);

but in binary level, which what you should do is calculating how far away we need to walk from start to index of 36, which can be done by 36 * sizeof(Elf64_Shdr), in this case, this is same as 36 * ehdr->e_shentsize, then add it with initial offset where Shdr start off.

final formula ehdr->e_shoff + (shstrtab_idx * ehdr->e_shentsize)

tests

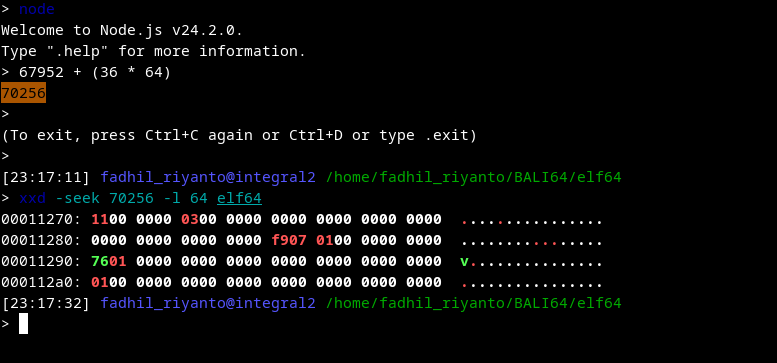

this is how shdr at index 36 look like (at binary view)

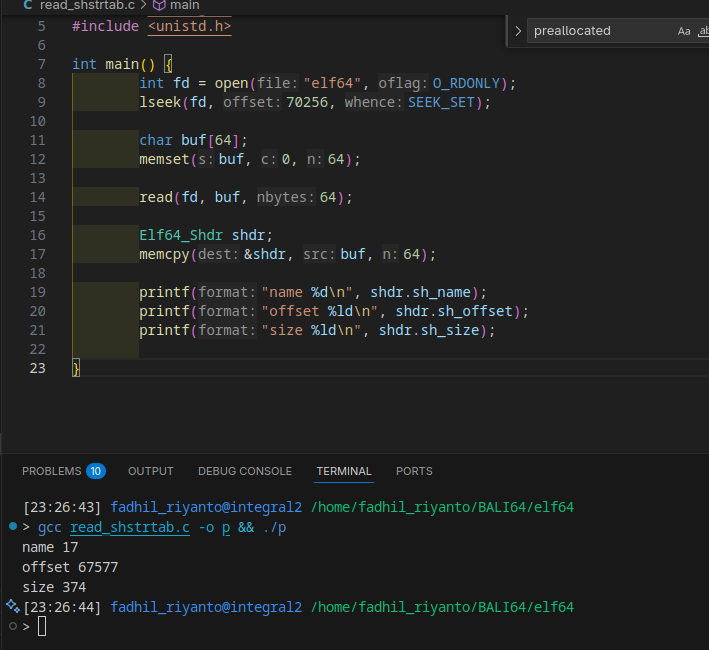

lets map it into C code for better readibility

we know that, in current section header array, .shstrtab located on 67577 far away from 0, that is location of actual .shstrtab, the Shdr only create a "list of section table, what section in this binary".

also, 374 is the size, how many memory you need to spend for this a bunch of string.

lets jump to 67577

xxd stuff

found!

future
